SEW brakes and accessories

From replacement of entire SEW brakes or replacement of individual spare parts such as brake springs to replacement of lining carriers – also known as brake linings – we can help you make the right choice. Do you need a driver or a certain SEW brake rectifier (brake_rectifier in stock)? No problem! Please contact us!

Due to our long-standing contact with SEW, we can also convince with low prices.

Send us a non-binding offer now!

Contact ATG Engineering!

What brakes for which motor with which maximum braking torque?

It is in the nature of things that larger and stronger motors also need stronger brakes with sufficient braking torque to stop quickly, e.g. during an emergency stop. We will be happy to advise you!

Older engine series

Brake Type	BMG02	BR03	BMG05	BMG1	BMG2	BMG4	BMG8		BM15
for motor size	DT56	DR63	DT71/80	DT80	DT90/DV100	DV100	DV112M	DV132S	DV132M	DV132ML/ DV160M
Maximum braking torque	1.2	3.2	5.0	10	20	40	55	75	100	150

Brake Type	BM30		BM31	BM32	BM62	BMG61	BMG122
for motor size	DV160L	DV180M/L	DV200/225	DV180M/L	DV200/225	DV250/280	DV250/280
Maximum braking torque	200	300	300	300	600	600	1200

Current motor series

Brake Type	BE05	BE1	BE2	BE5	BE11	BE20
for motor- size	DR71 DR80	DR71 DR80 DR90	DR80 DR90/100	DR90/100 DR112/132	DR112/132 DR160	DR160 DR180
Maximum Braking torque	5.0	10	20	55	110	200

Brake Type	BE30	BE32	BE60	BE62	BE120	BE122
for motor- size	DR180 DR200/225	DR180 DR200/225	DR200/225 DR250/280	DR200/225 DR250/280	DR250/280 DR315	DR315
Maximum braking torque	300	600	600	1000	1000	2000

Older engine series

BMG02 for DT56 with 1.2 Nm
BR03 for DR63 with 3.2 Nm
BMG05 for DT71/80 with 5 Nm
BMG1 for DT80 with 10 Nm
BMG2 for DT90/DV100 with 20 Nm
BMG4 for DV100 with 40 Nm
BMG8 for DV112M with 55 Nm
BMG8 for DV132S with 75 Nm
BM15 for DV132M with 100 Nm
BM15 for DV132ML/ DV160M with 150 Nm
BM30 for DV160L & DV180M/L with 200 Nm
BM31 for DV200/225 with 300 Nm
BM32 for DV180M/L with 300 Nm
BM62 for DV200/225 with 600 Nm
BMG61 for DV250/280 with 600 Nm
BMG122 for DV250/280 with 1200 Nm

Current motor series

BE05 for DR71 DR80 with 5 Nm
BE1 for DR71 DR80
BE5 for DR90 with 10 Nm
BE2 for DR80 DR90/100 with 20 Nm
BE5 for DR90/100 DR112/132 with 55 Nm
BE11 for DR112/132 DR160 with 110 Nm
BE20 for DR160 DR180 with 200 Nm
BE30 for DR180 DR200/225 with 300 Nm
BE32 for DR180 DR200/225 with 600 Nm
BE60 for DR200/225 DR250/280 with 600 Nm
BE62 for DR200/225 DR250/280 with 1000 Nm
BE120 for DR250/280 DR315 with 1000 Nm
BE122 for DR315 with 2000 Nm

Request SEW brakes, brake rectifiers, drivers or other spare parts now without obligation!

Unlike online shops, we offer you individual offers with current best prices!
Please contact us!

Please send me the current price for ... !

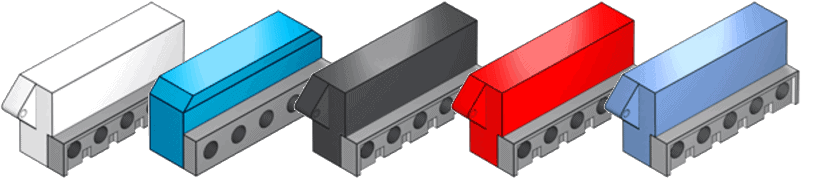

SEW Brake rectifier

Which brake rectifier with which SEW brake?

	three phase motors SEW types	AC connection Standard version in terminal box	AC connection In the control cabinet	DC 24 V connection Standard version in terminal box	DC 24 V connection In the control cabinet
old engine generation	DT56..BMG	BG (optional from frame size 71: BGE or BSR/BUR)	BMS, BME, BMH, BMP, BMK	without control unit	BSG BMV
	DR63..BR			without control unit
	DT71..BMG			BS
	DT80..BMG
	DT90..BMG
	DV100..BMG
	DV112..BMG	BGE	BME, BMH, BMP, BMK	BSG
	DV132S..BMG
	DV132M..BM
	DV132ML..BM
	DV160..BM
	DV180..BM
	DV200..BM
	DV225..BM
	DV250..BMG		BME	–	–
	DV280..BMG		BME	–	–
Current motor generation	DR..BE05	BG (optional from frame size 71: BGE or BSR/BUR)	BMS, BME, BMH, BMP, BMK	BS	BSG BMV
	DR..BE1
	DR..BE2
	DR..BE5	BGE or BRS/BUR	BME, BMH, BMP, BMK	BSG
	DR..BE11
	DR..BE20
	DR..BE30			–
	DR..BE32
	DR..BE60
	DR..BE62
	DR..BE120	BMP3.1	BMP3.1	–	–
	DR..BE122	BMP3.1	BMP3.1	–	–

Which brake rectifier with which SEW brake?

AC connection Standard version in terminal box

	brake motor SEW type	Brake rectifier
old generation of motors	DT56..BMG	BG optional from frame size 71: BGE or BSR/BUR
	DR63..BR
	DT71..BMG
	DT80..BMG
	DT90..BMG
	DV100..BMG
	DV112..BMG	BGE
	DV132S..BMG
	DV132M..BM
	DV132ML..BM
	DV160..BM
	DV180..BM
	DV200..BM
	DV225..BM
	DV250..BMG
	DV280..BMG
Current motor generation	DR..BE05	BG optional from frame size 71: BGE or BSR/BUR
	DR..BE1
	DR..BE2
	DR..BE5	BGE or BRS/BUR
	DR..BE11
	DR..BE20
	DR..BE30
	DR..BE32
	DR..BE60
	DR..BE62
	DR..BE120	BMP3.1
	DR..BE122	BMP3.1

AC connection in control cabinet

	brake motor SEW type	Brake rectifier
old generation of motors	DT56..BMG	BMS, BME, BMH, BMP, BMP, BMK
	DR63..BR
	DT71..BMG
	DT80..BMG
	DT90..BMG
	DV100..BMG
	DV112..BMG	BME, BMH, BMP, BMK
	DV132S..BMG
	DV132M..BM
	DV132ML..BM
	DV160..BM
	DV180..BM
	DV200..BM
	DV225..BM
	DV250..BMG	BME
	DV280..BMG	BME
Current motor generation	DR..BE05	BMS, BME, BMH, BMP, BMP, BMK
	DR..BE1
	DR..BE2
	DR..BE5	BME, BMH, BMP, BMK
	DR..BE11
	DR..BE20
	DR..BE30
	DR..BE32
	DR..BE60
	DR..BE62
	DR..BE120	BMP3.1
	DR..BE122	BMP3.1

DC-24-V connection in standard version in terminal box

	brake motor SEW type	Brake rectifier
old generation of motors	DT56..BMG	without control unit
	DR63..BR	without control unit
	DT71..BMG	BS
	DT80..BMG
	DT90..BMG
	DV100..BMG
	DV112..BMG	BSG
	DV132S..BMG
	DV132M..BM
	DV132ML..BM
	DV160..BM
	DV180..BM
	DV200..BM
	DV225..BM
	DV250..BMG	–
	DV280..BMG	–
Current motor generation	DR..BE05	BS
	DR..BE1
	DR..BE2
	DR..BE5	BSG
	DR..BE11
	DR..BE20
	DR..BE30	–
	DR..BE32
	DR..BE60
	DR..BE62
	DR..BE120	–
	DR..BE122	–

DC-24-V connection in control cabinet

	brake motor SEW type	Brake rectifier
old generation of motors	DT56..BMG	BSG BMV
	DR63..BR
	DT71..BMG
	DT80..BMG
	DT90..BMG
	DV100..BMG
	DV112..BMG
	DV132S..BMG
	DV132M..BM
	DV132ML..BM
	DV160..BM
	DV180..BM
	DV200..BM
	DV225..BM
	DV250..BMG	–
	DV280..BMG	–
Current motor generation	DR..BE05	BSG BMV
	DR..BE1
	DR..BE2
	DR..BE5
	DR..BE11
	DR..BE20
	DR..BE30
	DR..BE32
	DR..BE60
	DR..BE62
	DR..BE120	–
	DR..BE122	–

Brake rectifier in stock (delivery time 1-2 working days)

Other brake rectifiers can still be requested, the delivery time may be longer!

SEW item number	SEW designation
08253846	BR.RECTIFIER BG 1,5
08253854	BR.RECTIFIER BGE 1,5
08253862	BR.RECTIFIER BG 3,0
08253870	BR.RECTIFIER BGE 3,0
08254796	BR.RECTIFIER BGH 3,0 GE HZNG 42V-150V
08255903	BR.RECTIFIER BG 1,0
08256853	BR.RECTIFIER BMP 1.5
08257221	BR.RECTIFIER BME 1,5
0825723X	BR.RECTIFIER BME 3,0
08258023	BR.RECTIFIER BMS 1,5
08258031	BR.RECTIFIER BMS 3,0
0825818X	BR.RECTIFIER BMH 1,5
08258198	BR.RECTIFIER BMH 3,0
08263507	BR.RECTIFIER BG 6
08264635	BR.RECTIFIER BMK 1,5
08265666	BR.RECTIFIER BMP 3,0
08265674	BR.RECTIFIER BMK 3,0
08266506	BR.RECTIFIER BGW
08269920	BR.RECTIFIER BG1,2
08270198	BR.RECTIFIER BG2,4
08275998	BR.RECTIFIER BGE 1,0
08276021	BR.RECTIFIER BGM1
08278814	BR.RECTIFIER BG 1,4
08278822	BR.RECTIFIER BGE 1,4
08281602	BR.RECTIFIER BMKB 1,5
08295077	BR.RECTIFIER BMP 3,1
08296111	BR.RECTIFIER BEM1
08298300	BR.RECTIFIER BMS 1,4
08298319	BR.RECTIFIER BME 1,4
08298335	BR.RECTIFIER BMK 1,4
08298475	BR.RECTIFIER BES
08299714	BR.RECTIFIER BST0.6S-460V-00
13000772	BR.RECTIFIER BST0.7S-400V-00
13001337	BR.RECTIFIER BST1.2S-230V-00
18255191	BR.RECTIFIER BST0.6S-460V-0B
18255205	BR.RECTIFIER BST0.7S-400V-0B
28215036	BR.RECTIFIER BMT 2,2
